Product feature
Description:

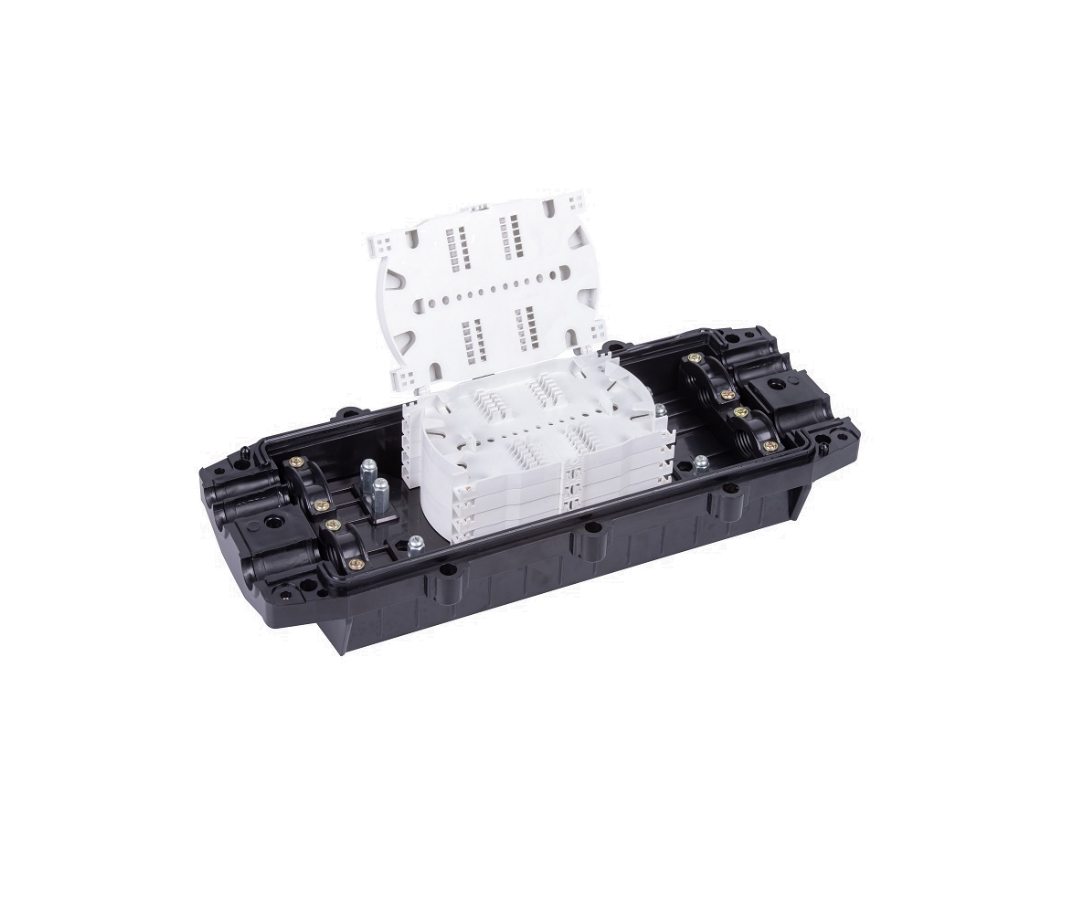

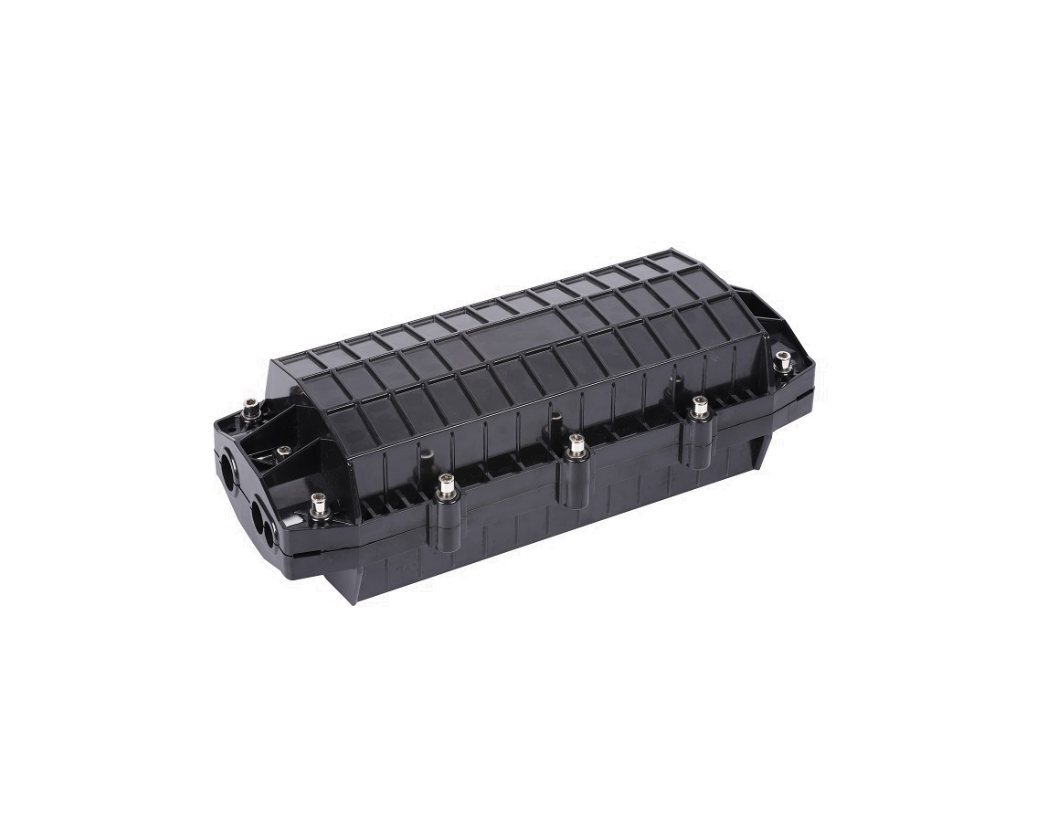

The Model No. SC-H144-02 in-line fiber closure is designed for straight-through line, branching applications, ensuring protection from the environment. It provide 4 port for both ends and hold 144 cores splicing. It has lightweight, high mechanical strength, anti-aging, strong corrosion resistance features and suitable for underground, wall mounting, duct mounting and manhole mounting deployment.
Technical features:
- Be made of high quality engineering plastic
- Max capacity is up to 144 cores
- Application cable diameter(Φ15mm～Φ21mm)
- For straight and branching application
- Four cable ports: two inlet and two outlet
- Suitable for buried, duct and aerial installation
- Waterproof level meet IP68
Dimension diagram:
