Product feature
Technical features:
- Be made of high quality engineering plastic
- Application cable diameter(Φ8mm～Φ18mm)
- For straight and branching application
- Four cable ports: one oval port and four branch port
Dimenstion diagram:

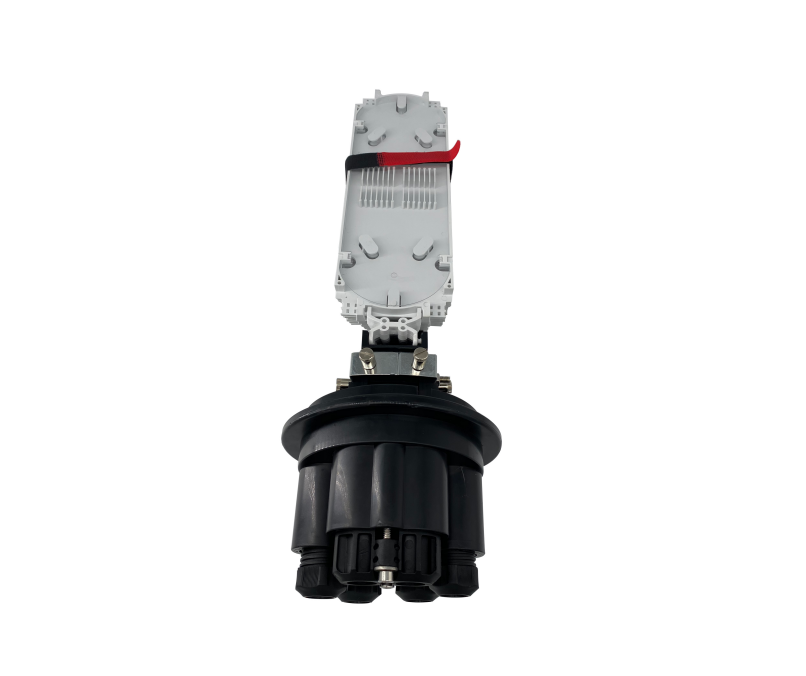

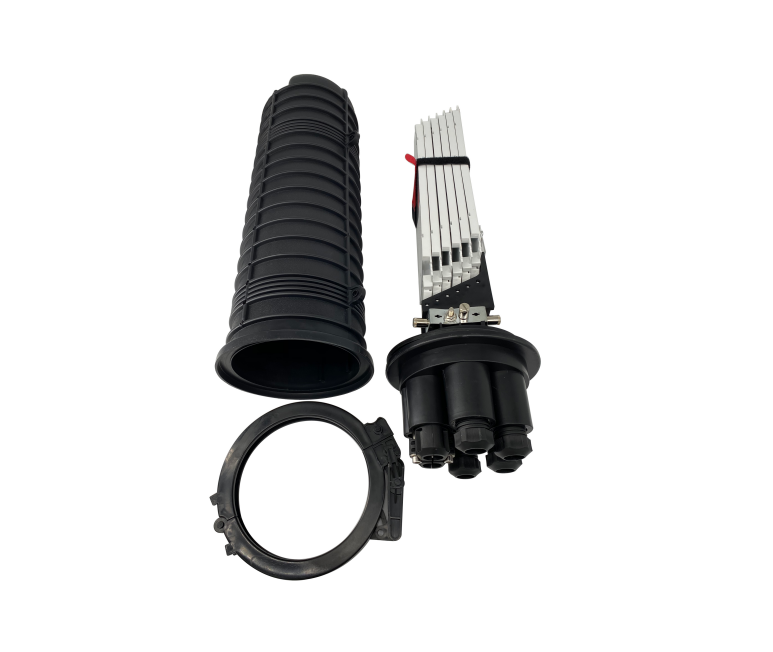

144F Dome Mechanical Splicing Closure-(SC-S144-01)
The Model SC-S144-01 is one of the main equipment for user access points, applied for protective connection and distribution between two or more cables. The primary function is to connect distribution cable and indoor cable in the open air. It’s widely used in communication systems, cable TV, optical cable network systems and others by virtue of steady structure, good sealing performance and easy construction.
.
Technical specification
| Mode | SC-S144-01 | ||
|---|---|---|---|
| Dimension | 540*Ф148 | Weight | 2.7Kg |
| Material | PP | Sealing mode | Mechanical |
| Cable ports | Oval port: 1pcs | Innet cable diameter | Φ8mm～Φ18mm |
| Outlet port: 4pcs | Outlet cable diameter | Φ8mm～Φ18mm | |
| Splice tray | 24C | Max capacity | 144C |
| Waterproof | IP68 | Installation mode | Aerial/Wall/Pole mounting |
Packaging data
| Mode | SC-S144-01 | |||
|---|---|---|---|---|
| Inner carton size | 550*230*210mm | Outer carton size | 645*475*565mm(6PCS) | |
| Pallet size | 1130*1130*120mm | Outer carton G.W | 16.5KG | |
