Product feature
Description:

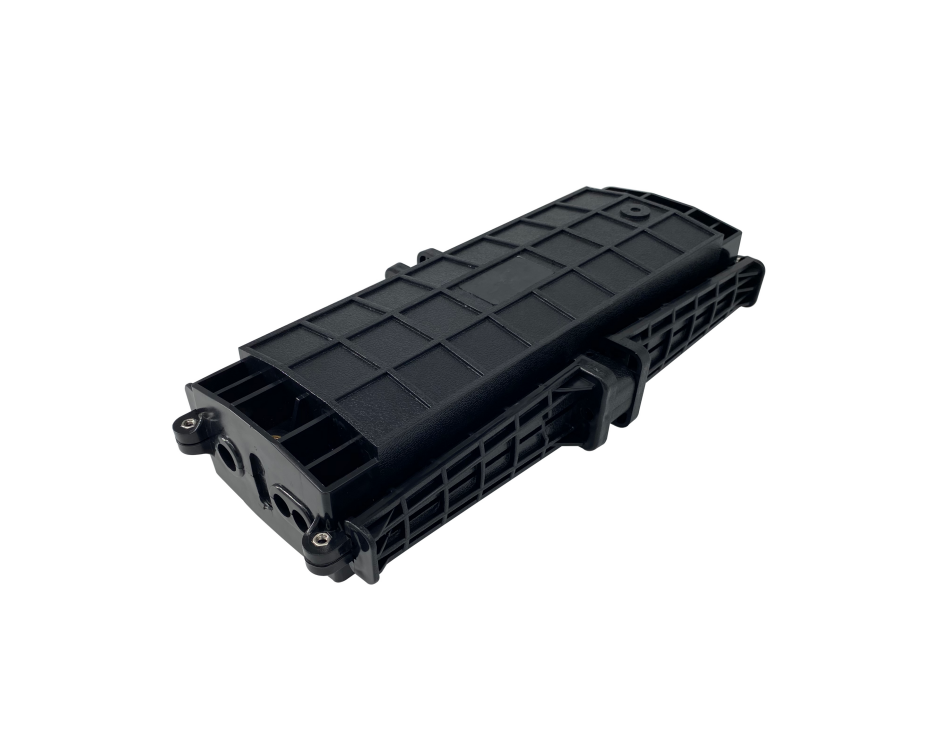

The Model No. SC-H048-09 in-line fiber closure is designed for straight-through line, branching applications, ensuring protection from the environment. It provide 6 port for both ends and hold 48 cores splicing. It has lightweight, high mechanical strength, anti-aging, strong corrosion resistance features and suitable for underground, wall mounting, duct mounting and manhole mounting deployment.
Technical features:
- Be made of high quality engineering plastic
- Application cable diameter(Φ13mm～Φ15mm)
- The box is lighter and tailored aerial installation
- Four cable ports: three inlet and three outlet

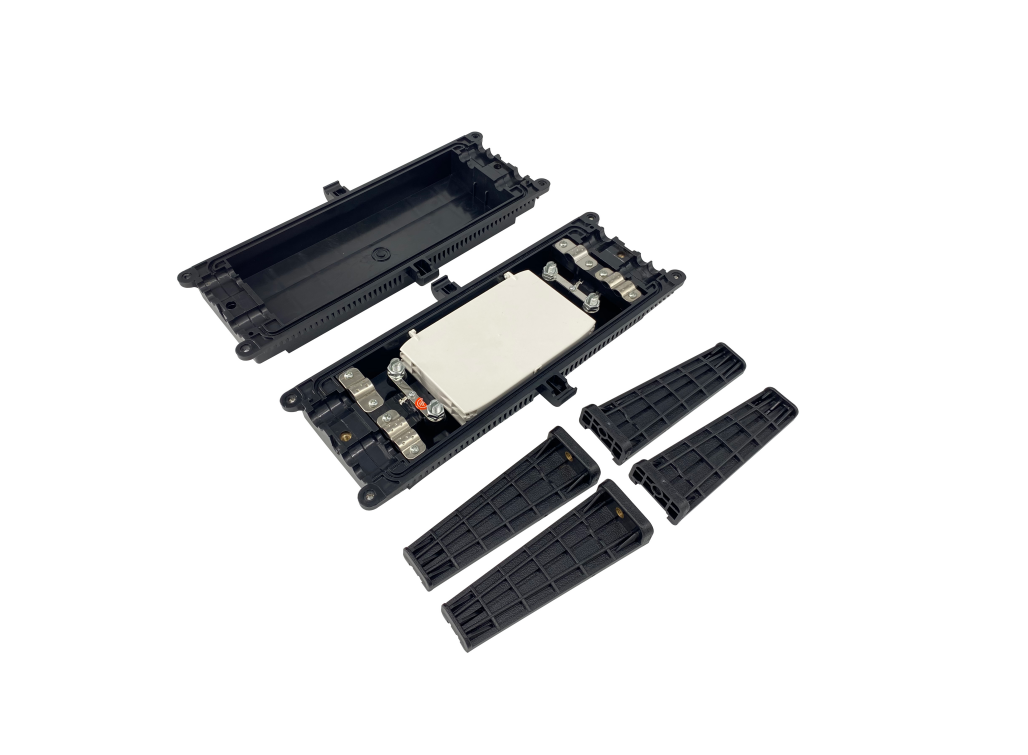

- Excellent fiber routing design ensures fiber storage space
Dimension diagram:
