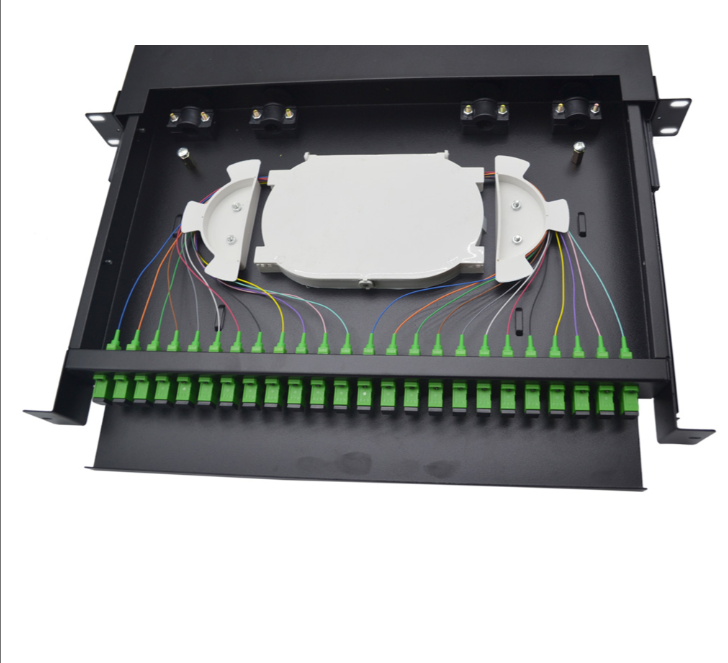

Metal Frame 1U 12 Port Patch Panel, Multimode 12 Core Optical Patch Panel

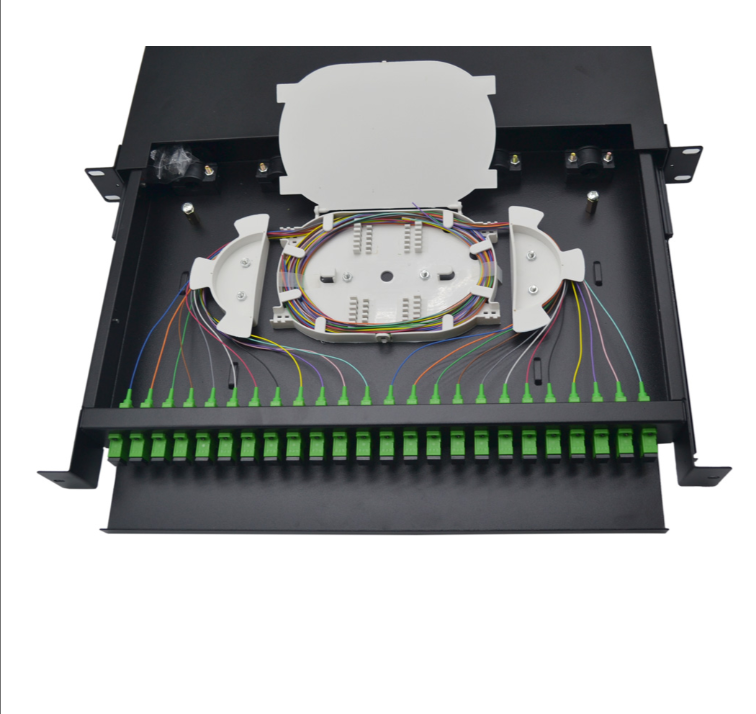

Metal Frame 1U 12 Port Patch Panel, Multimode 12 Core Optical Patch Panel - Image 2

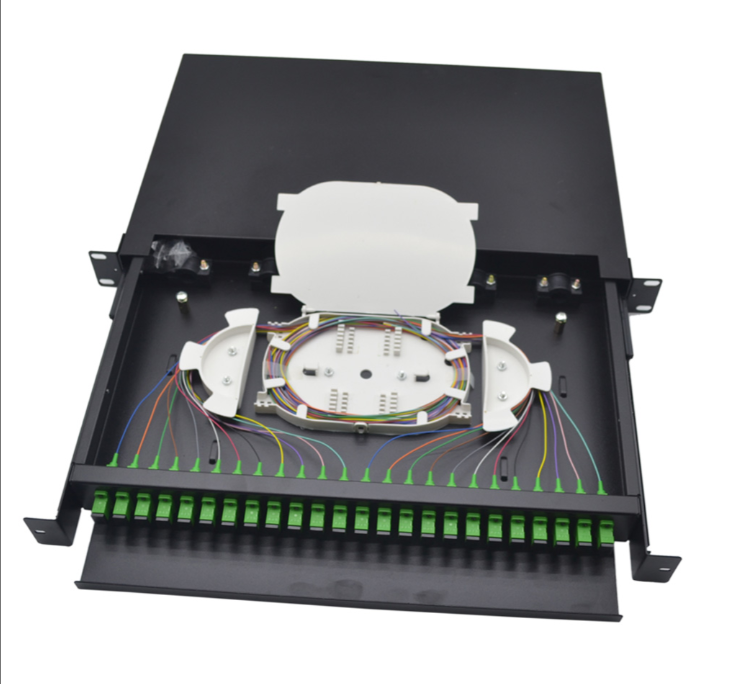

Metal Frame 1U 12 Port Patch Panel, Multimode 12 Core Optical Patch Panel - Image 3

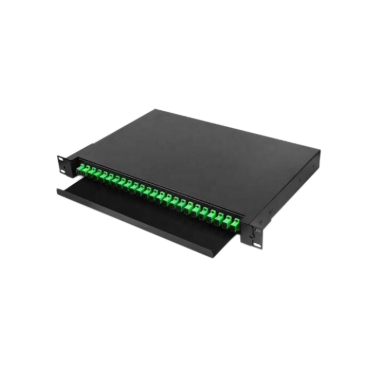

Metal Frame 1U 12 Port Patch Panel, Multimode 12 Core Optical Patch Panel - Image 4

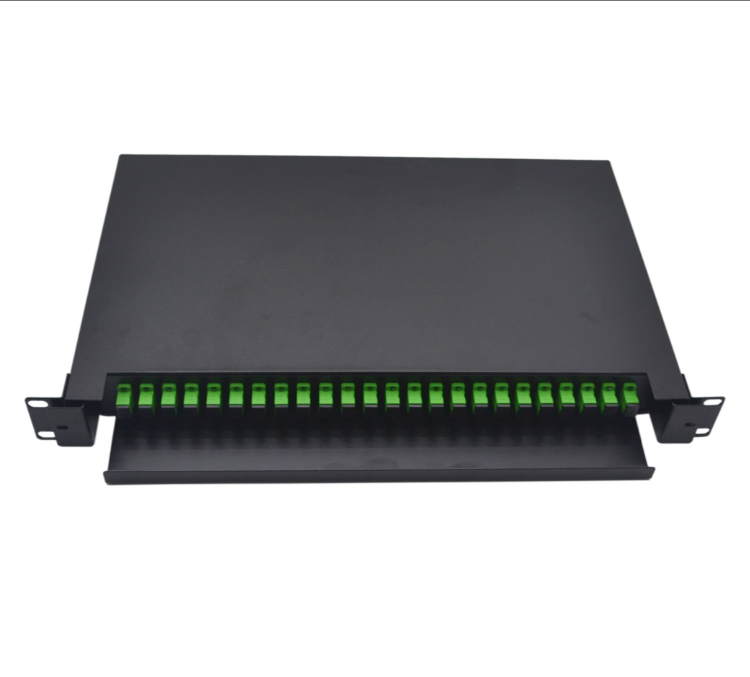

Metal Frame 1U 12 Port Patch Panel, Multimode 12 Core Optical Patch Panel - Image 5

Metal Frame 1U 12 Port Patch Panel, Multimode 12 Core Optical Patch Panel

  • Model Name: Optical Distribution Fram(CFO-ODF-02C)
  • Application: Data Processing Centers
  • Applicable cable types: optical cable, pigtail
  • Material: Cold-rolled Steel Plate
  • Color: Black
  • Capacity: 12  cores
  • Fit For: 19 Inch Rack
  • Suitable For: SC;LC;FC;ST Connectors
  • Plugging times：300
  • Operating Temperature: -40~ +85（℃）
Categories ,
Chat on WhatsApp
Get Information
Metal Frame 1U 12 Port Patch Panel, Multimode 12 Core Optical Patch Panel

The case is made of cold rolled steel, Electrostatic Spraying, and provides 12 single or double adapters, available for SC, LC, FC, ST

Metal Frame 1U 12 Port Patch Panel, Multimode 12 Core Optical Patch Panel Features:
  1. Design of fixed panel
  2. Drawing type structure, convenient construction operation
  3. Fit for“19” rack.
  4. Suitable for FC, SC, LC, ST, etc

Applications

Metal Frame 1U 12 Port Patch Panel, Multimode 12 Core Optical Patch Panel Applications :

  1. Optical Access Network
  2. Data Processing Centers
  3. Cable television
  4. Local Area Network
  5. Coarse Wavelength Division Multiplexer

Configuration

Metal Frame 1U 12 Port Patch Panel, Multimode 12 Core Optical Patch Panel Configuration:

ItemSpecificationRemark
Size482mm*315mm*3UWith Mounting rack
Length435mmThe mounting rack is not included
Capacity12F
Splice Tray Quantity1pcsOr 1*24F
Splice Tray Capacity12 F
Adapter TypeSimplex SCSCUPC or SCAPC
Adapter Quantity12pcs
Pigtail12 pcs（1 group ）12 colors per group
Material of bodyCold-Rolled steel plate
Thickness of material1.2±0.1mm
ColorBlackAccording to customer requirements
Weight3.6kg
Operating Temperature-40～+85℃
